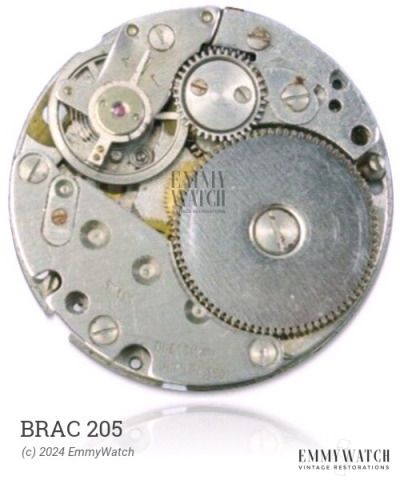

Brac 205
Ligne: 13'''
Jewels: 17
Lift Angle: 49°
Power Reserve: 47 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: ~1970
Diameter: 29.4 mm
Height: 5.3 mm
Hands: 1.50 x 0.90 / 0.21 mm
The Brac 205 is a manual wind mechanical watch movement that was primarily used by the German military in the 1970s. It features a day and date display, which can be adjusted by changing the 22-24-hour setting. The movement also includes an adjustable stud holder and shock protection for enhanced durability.
The Brac 205 features the following functions:
- Adjustable Stud Holder
- Calendar
- Date: set by changing 22-24h
- Day
- Manual Winding
- Shock Protection
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.70 x 0.130 x 360 x 11.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
