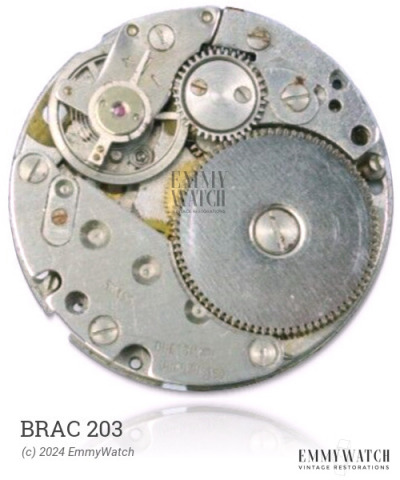

Brac 203
Ligne: 11.5'''
Jewels: 17
Power Reserve: 50 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1958-1962
Diameter: 26 mm
Height: 3.9 mm
Hands: 1.30 x 0.80 x 0.20 mm
The Brac 203 watch movement is a manual wind movement with a sweep second function. It incorporates Kif-Duofix combined settings for the escapement wheel. This movement was used during the period of 1958-1962.
The Brac 203 features the following functions:
- Manual Winding
- Sweep Seconds
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 5469 | Ordinary/None | Buy staff |
| 5469 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.25 x 0.120 x 290 x 10.0 mm | Manual | Buy mainspring | |
| 1.20 x 0.120 x 320 x 9.5 mm | GR2973 | Manual | Buy mainspring |
| 1.20 x 0.130 x 300 x 9.5 mm | GR2988 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
