Brac 185
Ligne: 5.75 x 8.5'''
Jewels: 15
Power Reserve: 43 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1950
Size: 12.8 x 19.5 mm
Hands: 1.20 x 0.60 mm

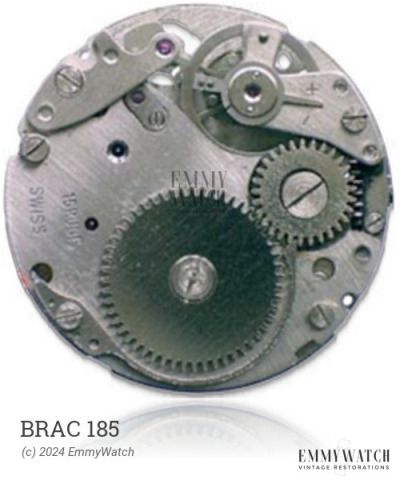

The Brac 185 watch movement is a manual wind movement with sweep second function. It is similar to the ETA 1201 movement, with the main difference being the inclusion of a sweep second hand. The exact differences between the Brac 185 and ETA 1213 movements are not known, but it is likely that these numbers were assigned to indicate variations in base plates, bridge layouts, and lever bridges. The Brac 185 movement was commonly used in watches produced around the 1950s.
The Brac 185 features the following functions:
- Manual Winding
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.080 x 260 x 7.5 mm | GR3203 | Manual | Buy mainspring |
| 1.30 x 0.080 x 245 x 7.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
