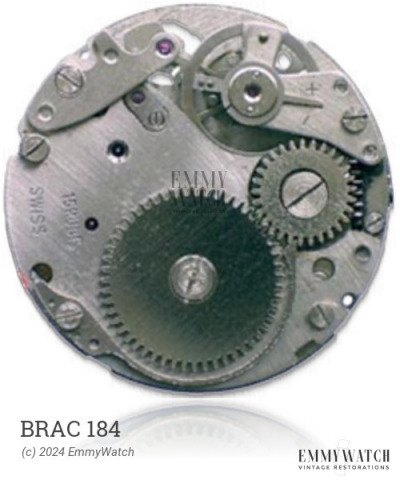

Brac 184
Ligne: 6.75'''
Jewels: 19
Lift Angle: 51°
Frequency: 21600 vph
Type: Manual Wind
Period used: ~1965
Diameter: 15.3 mm
Height: 3.2 mm
Hands: 1.00 x 0.55 mm
The Brac 184 watch movement features the Girocap combined setting for escapement wheel, which allows for enhanced precision and reliability. This manual wind movement is equipped with an Adjustable Stud Holder and Incabloc Shock Protection, ensuring optimal timekeeping performance. The Brac 184 movement was used in watches produced around 1965.
The Brac 184 features the following functions:
- Adjustable Stud Holder
- Incabloc Shock Protection
- Manual Winding
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 5476 | Ordinary/None | Buy staff |
| 5476 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.075 x 200 x 6.0 mm | GR3192 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
