Bettlach 8814
(EB)
Ligne: 16.5'''
Jewels: 15
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1940
Diameter: 37.2 mm
Height: 4.2 mm
Hands: 2.00 x 1.15 / 0.27 mm

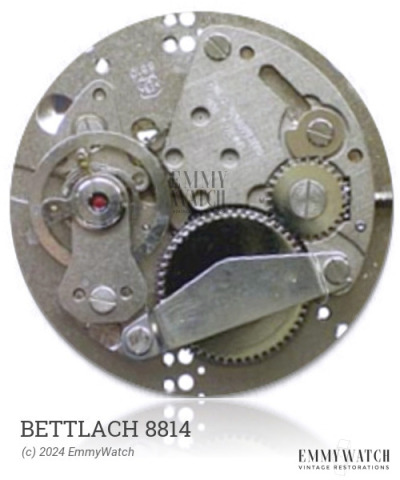

The Bettlach 8814 mechanical watch movement is an open face calibre with varying bridge shapes. It is likely equipped with a left-handed ratchet-wheel screw. The specific differences between the 285, 293, 299, 303, 327, 331, 335, 339, 345, and 497 variations are not known. The movement features stem winding and setting, as well as a sub-second function. It was commonly used around the year 1940.
The Bettlach 8814 features the following functions:
- Stem wind and set
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.180 x 450 x 15.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
