Bettlach 8460-73
(EB)
Ligne: 11.5'''
Jewels: 15
Power Reserve: 50 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Diameter: 25.6 mm
Height: 3.55 mm
Hands: 1.30 x 0.60 / 0.21 mm

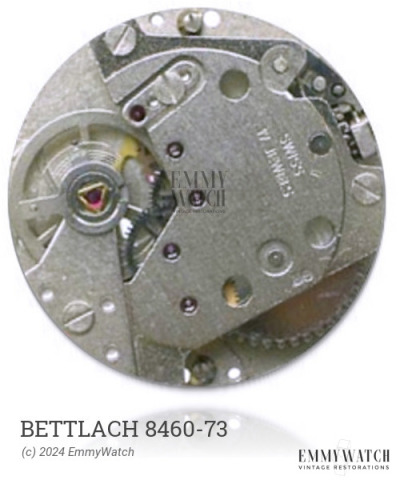

The Bettlach 8460-73 watch movement is a manual wind movement with a sub second function that was introduced around 1945. It is part of a series of movements ranging from 310 through 329, where the specific differences between these movements are not known.
The Bettlach 8460-73 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.100 x 300 x 9.0 mm | GR4122 | Manual | Buy mainspring |
| 1.50 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
