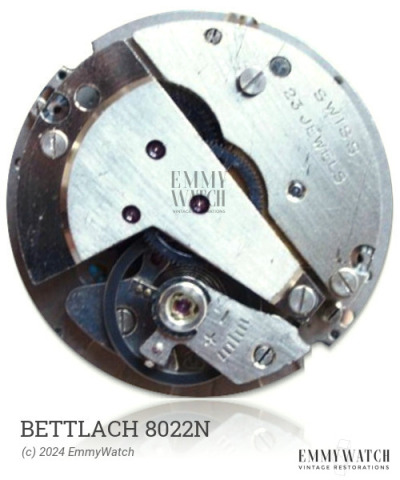

Bettlach 8022N
(EB)
Ligne: 7.75 x 11.5'''
Jewels: 15/17
Power Reserve: 42 hrs
Frequency: 18000 vph
Type: Manual Wind
Size: 17.5 x 26 mm
Height: 3.3 mm
Hands: 1.30 x 0.60 / 0.20 mm
The Bettlach 8022N is a manual wind watch movement featuring a sub-second function. It shares similarities with movements labeled from 130 to 149, though the specific differences in bridge layouts are not known at this time.
The Bettlach 8022N features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.100 x 350 x 10.0 mm | Manual | Buy mainspring | |
| 1.30 x 0.100 x 360 x 9.5 mm | GR3257 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
