Bettlach 1605
(EB)
Ligne: 8.75'''
Jewels: 17
Lift Angle: 52°
Power Reserve: 36 hrs
Frequency: 18000 vph
Type: Manual Wind
Diameter: 19.8 mm
Height: 4.25 mm
Hands: 1.30 x 0.80 x 0.21 mm

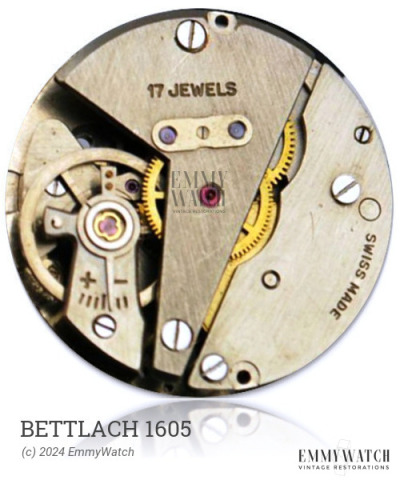

The Bettlach 1605 watch movement is a manual wind mechanical movement that incorporates a sweep second function. It shares similarities with other A. Schild movements such as the 1256, 1346, 1360, and 1453, but specific differences between these movements are not known.
The Bettlach 1605 features the following functions:
- Manual Winding
- Mechanical Movement
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 148 | Ordinary/None | Buy staff |
| 265 | Ordinary/None | Buy staff |
| 3305 | Ordinary/None | Buy staff |
| 226 | Ordinary/None | Buy staff |
| 227 | Ordinary/None | Buy staff |
| 265 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.35 x 0.080 x 250 x 7.5 mm | Manual | Buy mainspring | |
| 1.35 x 0.080 x 240 x 7.0 mm | GR3473 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More | |||
| See More | |||
| See More |
Documents
Parts Listing
