Bettlach 1344
(EB)
Ligne: 17.75'''
Jewels: 15
Power Reserve: 32 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1892-
Diameter: 40.7 mm
Height: 6.6 mm
Hands: 1.65 x 0.65 / 0.25 mm

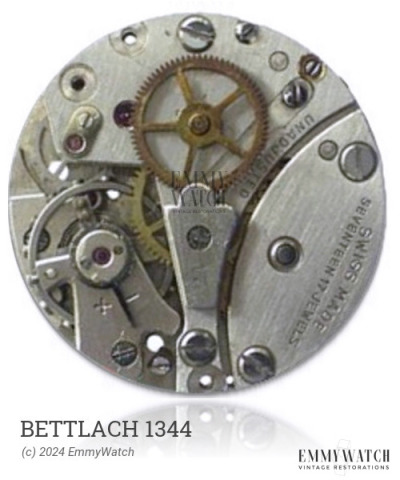

The Bettlach 1344 watch movement is an open face calibre introduced in 1892. It features a bimetallic screw balance with four adjustable screws and a Breguet hairspring. Additionally, an optional patented crown mechanism with a set lever is available. The movement functions include stem winding and pin setting, the option of a set lever, and a sub-second display. The Bettlach 1344 movement has been in use since 1892.
The Bettlach 1344 features the following functions:
- Set lever option
- Stem wind and pin set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
