Bettlach 1332
(EB)
Ligne: 12.5'''
Jewels: 17
Power Reserve: 48 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1953-1960
Diameter: 28.5 mm
Height: 3.4 mm
Hands: 1.30 x 0.85 x 0.22 mm

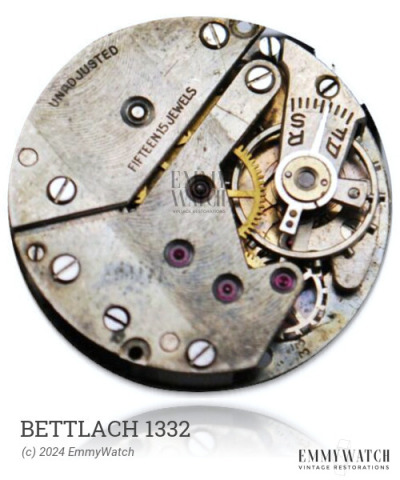

The Bettlach 1332 watch movement, produced from 1953 to 1960, features an intermediate wheel that enables a large balance and low profile while maintaining its robustness. This layout allows for the placement of the seconds wheel in either the center or as a sub-second function without requiring additional modifications. Additionally, this movement is manual wind and incorporates a sweep second hand.
The Bettlach 1332 features the following functions:
- Manual Winding
- Sweep Seconds
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.110 x 390 x 11.0 mm | Manual | Buy mainspring | |
| 1.40 x 0.130 x 340 x 11.0 mm | GR3750 | Manual | Buy mainspring |
| 1.35 x 0.120 x 340 x 10.0 mm | GR3515 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
