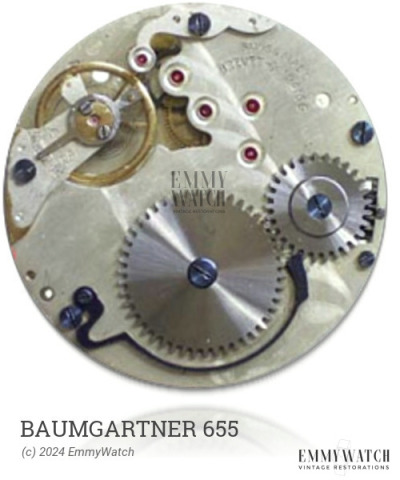

Return To ShopThe Baumgartner 655 watch movement, which was in production from 1939 to 1942, features a Breguet hairspring and a coupling mechanism facilitated by a swiveling hand pinion. This movement holds the distinction of being the smallest diameter for a serial-produced chronograph during its time. Its functions include a manual-wind chronograph with a 60-second hand and a pillar wheel, as well as a sub-second feature.
The Baumgartner 655 features the following functions:
Dimensions | GR Reference # | End Type | Buy |
---|---|---|---|
1.40 x 0.100 x 300 x 9.0 mm | GR3664 | Manual | Buy mainspring |
1.40 x 0.110 x 260 x 8.0 mm | GR3696 | Manual | Buy mainspring |
1.30 x 0.100 x 300 x 9.0 mm | GR3254 | Manual | Buy mainspring |
Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
---|
Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
---|
Part Description | Reference # | Alternate | Buy |
---|---|---|---|
BALANCE COMPLETE | 721/800 | 721/800 | Buy part |
CENTER WHEEL, SS | 3/BUL 10AH | 3/BUL 10AH | Buy part |
CROWN, YELLOW D5.35 T10 | 175Y/BUL | 175Y/BUL | Buy part |
MAINSPRING 1.40-.11-260 8 | MS-510H | GR 3696 | Buy part |
PALLET ARBOR | 72S/100P | 714/ENI 1120 | Buy part |
ROLLER 200X95X42 | 82S/75R | Buy part | |
SET BRIDGE | 28/BUL 10AH | Buy part | |
STAFF | 100/175 | BUL 10AN | Buy part |
STEM | 200/186F | 16A/BUL 10AH | Buy part |
