Angelus 253
Ligne: 20'''
Jewels: 27
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1890
Diameter: 45.12 mm
Height: 10.0 mm

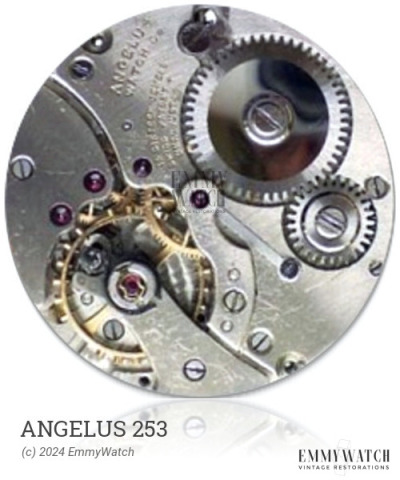

The Angelus 253 watch movement is a hunter calibre with a bimetallic screw balance and a Breguet hairspring. It features a slide-operated minute repeater mechanism with two hammers on spiral gongs and a hook-lever regulator. The movement offers stem winding and lever setting functions, along with a sub-second display. It was commonly used in watches around the period of 1890.
The Angelus 253 features the following functions:
- Minute Repeater Complication
- Stem wind and lever set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
