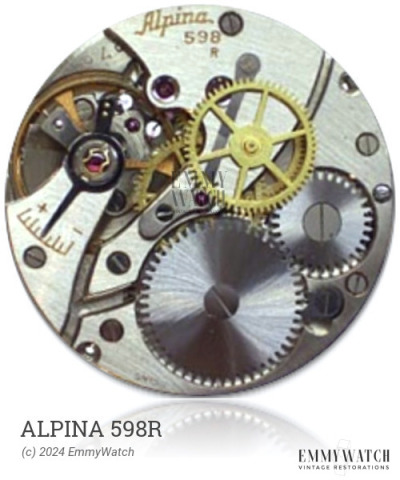

Alpina 598R
(Alpina Straub)
Ligne: 10.5'''
Jewels: 17
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1943
Diameter: 23.7 mm
Height: 3.9 mm
Hands: 1.30 x 0.80 x 0.20 mm
The Alpina 598R watch movement is a manual wind movement with a sweep second function and no shock protection. It is part of a series of movements that includes the 1014, 1014A, 1014B, and 1014C, each differing in the type of second hand and shock protection. The 1014A, specifically, features a sweep second hand and lacks shock protection. It was commonly used around 1943.
The Alpina 598R features the following functions:
- Manual Winding
- No Shock Protection
- Sweep Seconds
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.25 x 0.105 x 300 x 9.0 mm | GR3125 | Manual | Buy mainspring |
| 1.25 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring | |
| 1.20 x 0.100 x 300 x 9.0 mm | GR2920 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
