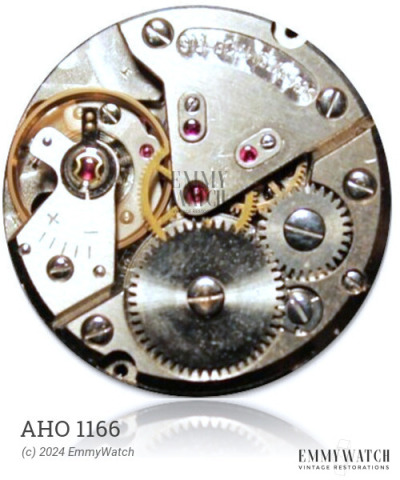

Return To ShopThe AHO 1166 watch movement features a Girocap combined settings for escapement wheel and an indirectly driven minute system that enables a very large balance. This movement is a collaborative effort of renowned watch brands including Doxa, Ebel, Eberhard, Favre-Leuba, Girard-Perregaux, Juvenia, and Zodiac. The calibres Felsa 4035 and 4036 are mentioned as potential equivalents in the Bestfit register, although their actual manufacturer remains uncertain. This manual wind movement was primarily used around 1965.
The AHO 1166 features the following functions:
Ronda Reference # | Shock System | Buy |
---|
Dimensions | GR Reference # | End Type | Buy |
---|---|---|---|
1.40 x 0.060 x 180 x 5.5 mm | GR3560 | Manual | Buy mainspring |
Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
---|
Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
---|
Part Description | Reference # | Alternate | Buy |
---|---|---|---|
BALANCE COMPLETE, INCABLOC | 721/1083 | 721/1083 | Buy part |
MAINSPRING 1.40-.06-180 5,5 | MS-515A | GR 3560 | Buy part |
PALLET ARBOR, 31X85X8 | 72S/12P | 714/BUR 65 | Buy part |
ROLLER, INCABLOC | 82S/311R | Buy part | |
STAFF, INCA | 100/2121 | 100/FEL 4035 | Buy part |
STAFF, INCA BALANCE 65 HSP 40 | 100/2126 | Buy part | |
STEM | 200/1422F | 401/FEL 4035 | Buy part |
