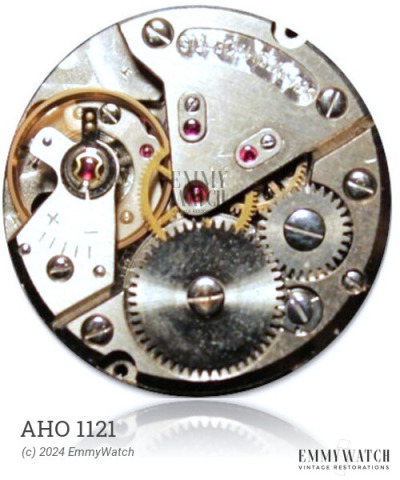

AHO 1121
Ligne: 18'''
Jewels: 17
Frequency: 18000 vph
Type: Manual Wind
Period used: 1928-
Diameter: 38.7 mm
Height: 4.6 mm
The AHO 1121 is a hunter calibre watch movement that was in use from 1928 onwards. It features a bimetallic screw balance with four adjustment screws and a Breguet hairspring. Additionally, it offers the functions of stem winding and setting, as well as a sub-second display. An optional cam disc regulator can also be incorporated into this movement.
The AHO 1121 features the following functions:
- Stem wind and set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
