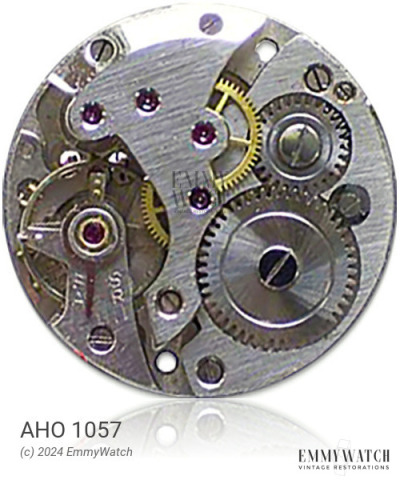

AHO 1057
Ligne: 15'''
Jewels: 15
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1940
Diameter: 33.85 mm
Height: 4.6 mm
Hands: 1.60 x 1.00 / 0.18 mm
Base: Cyma Tavannes 574
The AHO 1057 is an open face calibre watch movement that shares similarities with the 565 model but specific differences are not known. This movement is stem wind and set, and features a sub second function. It was commonly used during the approximate period of 1940.
The AHO 1057 features the following functions:
- Stem wind and set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.65 x 0.160 x 360 x 13.0 mm | Manual | Buy mainspring | |
| 1.60 x 0.160 x 400 x 13.0 mm | GR4633 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
