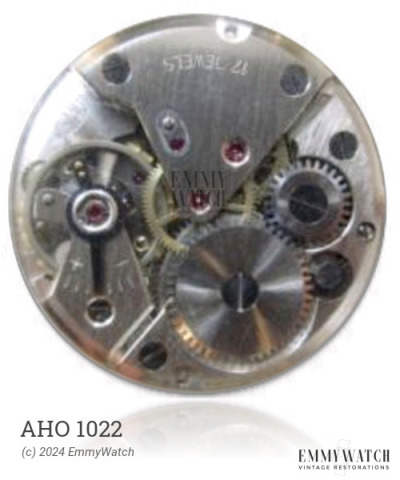

AHO 1022
Ligne: 5.5 x 9.75'''
Jewels: 15/17
Frequency: 17897 vph
Type: Manual Wind
Period used: 1924-1939
Size: 12.4 x 21.95 mm
Height: 3.1 mm
The AHO 1022 watch movement is a manual wind movement that was produced between 1924 and 1939. During this period, a total of 13,200 units were produced. The movement features a bimetallic screw balance and a Breguet hairspring.
The AHO 1022 features the following functions:
- Manual Winding
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 1356 | Ordinary/None | Buy staff |
| 1343 | Ordinary/None | Buy staff |
| 1357 | Ordinary/None | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 0.90 x 0.070 x 220 x 6.0 mm | GR2267 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
