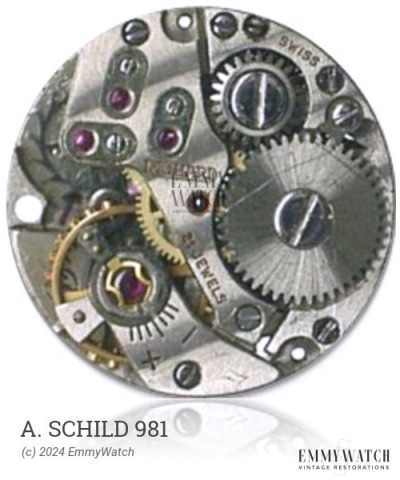

A. Schild 981
(AS, A Schild)
Ligne: 10.5'''
Jewels: 15/17
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1935
Diameter: 23.3 mm
Hands: 1.40 x 0.80 mm
The A. Schild 981 is a manual wind watch movement with a sub-second function. It features a bimetallic screw balance. It belongs to a group of movements including the 71, 73, 75-80, 144, 166, 167, 203, 205, 216, 219, 240, 244, 255, 268, 284, 286, 287, and 326. The A. Schild 981 was commonly used around 1935.
The A. Schild 981 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.70 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring | |
| 1.50 x 0.170 x 440 x 14.0 mm | GR4296 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
