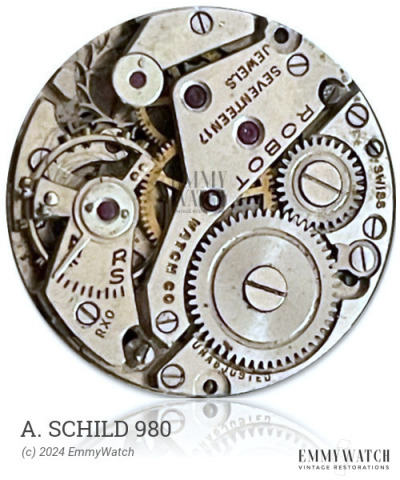

A. Schild 980
(AS, A Schild)
Ligne: 9.75'''
Jewels: 7/17
Power Reserve: 45 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1960
Diameter: 22 mm
Height: 4.7 mm
Hands: 1.30 x 0.80 x 0.20 mm
Base: Oris 582
The A. Schild 980 is a pin-lever escapement mechanical watch movement. It features a ratchet on the dial side and a crown mechanism with a rocker bar. The movement is equipped with a Kif-Duofix combined setting for the escapement wheel and consists of 17 jewels. As for its functions, the A. Schild 980 movement offers manual winding and a sweep second hand. It was commonly used during the approximate period of 1960.
The A. Schild 980 features the following functions:
- Manual Winding
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.090 x 360 x 9.5 mm | GR4468 | Manual | Buy mainspring |
| 1.60 x 0.090 x 320 x 9.0 mm | GR4466 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|

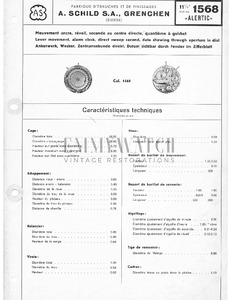

Documents
