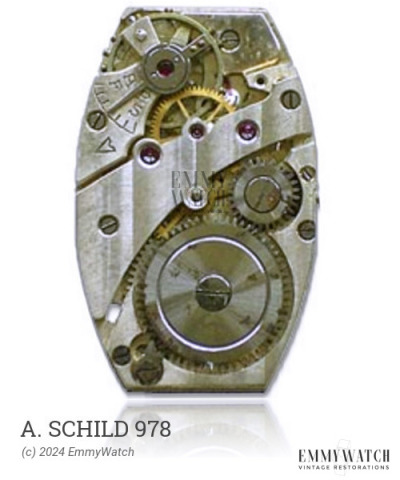

A. Schild 978
(AS, A Schild)
Ligne: 6.75 x 8'''
Jewels: 17
Power Reserve: 34 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: 1949-1953
Size: 15.3 x 18 mm
Hands: 1.05 x 0.65 mm
The A. Schild 978 is a mechanical watch movement that was in use from 1949 to 1953. It is a manual wind movement with a sweep seconds function.
The A. Schild 978 features the following functions:
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.20 x 0.090 x 220 x 7.0 mm | GR2893 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
