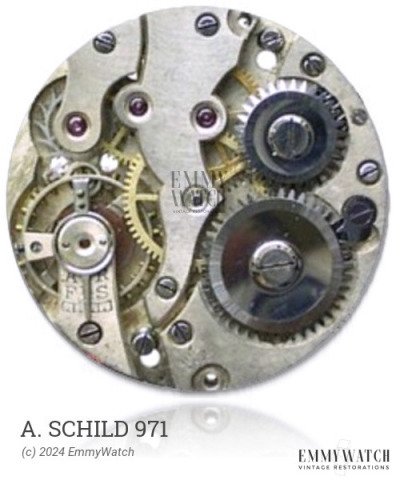

A. Schild 971
(AS, A Schild)
Ligne: 13'''
Jewels: 17
Power Reserve: 41 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1955
Diameter: 29.4 mm
Height: 3.8 mm
Hands: 1.50 x 0.80 / 0.20 mm
The A. Schild 971 watch movement, also known as the Wehrmachtswerk, is a line of movements produced with different calibers. There are two calibers in the 13.5'' category, specifically 1337 and 1511. In the 14'' category, there are two calibers, namely 1486 and 1543. Additionally, there are three calibers in this line that feature an indirect sweep second: 1155, 1164, and 1195. However, the production of these movements was relatively short-lived as they were eventually replaced by the AS 1188, which features a direct sweep second. The A. Schild 971 movement has the following functions: manual winding and sub second. It was primarily used around 1955.
The A. Schild 971 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.75 x 0.135 x 340 x 11.5 mm | GR5170 | Manual | Buy mainspring |
| 1.70 x 0.130 x 360 x 11.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
