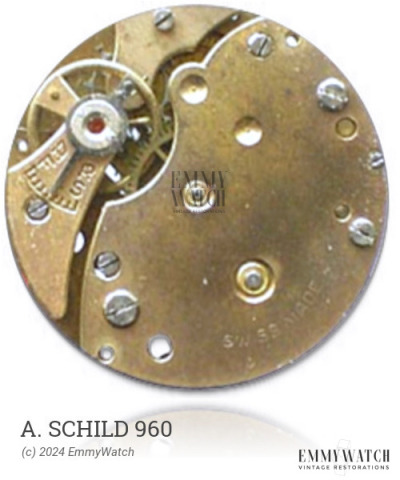

A. Schild 960
(AS, A Schild)
Ligne: 20'''
Power Reserve: 32 hrs
Frequency: 17280 vph
Type: Manual Wind
Period used: ~1940
Diameter: 45.1 mm
Height: 6.0 mm
Hands: 2.85 x 1.83 / 0.22 mm
The A. Schild 960 watch movement is an open face calibre with a pin-lever escapement and an indirect minute hand friction clutch on the barrel. The specific differences between the A. Schild 960 and the Hanhart 27 movements are not known. The movement features functions such as stem winding and setting, a sub second dial, and it was typically used around the 1940s.
The A. Schild 960 features the following functions:
- Stem wind and set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.65 x 0.250 x 23.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
