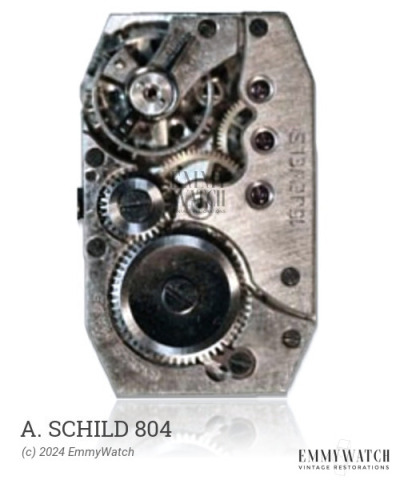

A. Schild 804
(AS, A Schild)
Ligne: 12.5'''
Jewels: 17
Lift Angle: 49°
Power Reserve: 49 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1950-1960
Diameter: 28.4 mm
Height: 5.7 mm
Hands: 1.40 x 0.90 x 0.30 mm
The A. Schild 804 is a mechanical watch movement that was utilized during the period of 1950-1960. It features a Breguet hairspring and incorporates several functions such as manual winding, a sweep second hand, and a quickset date mechanism activated by a pusher located at the 4 o'clock position. In addition to these functions, the A. Schild 804 is available in both sweep seconds and non-sweep seconds variations, and includes a calendar feature.
The A. Schild 804 features the following functions:
- Calendar
- Date: quickset with pusher at 4h
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 2743 | Ordinary/None | Buy staff |
| 4095 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.70 x 0.130 x 380 x 12.0 mm | GR4960 | Manual | Buy mainspring |
| 1.70 x 0.135 x 380 x 12.0 mm | GR4970 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
