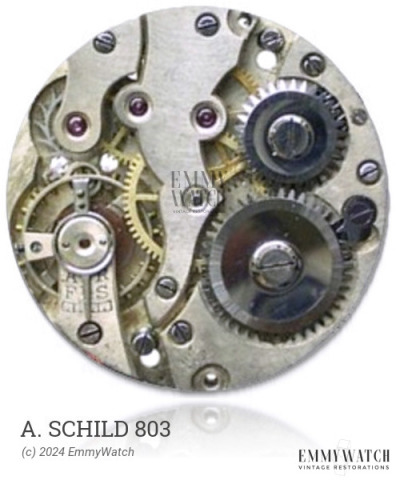

A. Schild 803
(AS, A Schild)
Ligne: 8.75'''
Jewels: 15
Power Reserve: 42 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1930
Diameter: 19.75 mm
Height: 3.4 mm
Hands: 1.20 x 0.60 / 0.18 mm
The A. Schild 803 is a mechanical watch movement with a bimetallic screw balance and Breguet hairspring. It shares similarities with the Aurore 110 and 130 watch movements, but further differences are unknown. The A. Schild 803 movement features manual winding, a subsecond function, and was used during the approximate period of 1930.
The A. Schild 803 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.25 x 0.085 x 240 x 7.0 mm | GR3089 | Manual | Buy mainspring |
| 1.20 x 0.090 x 250 x 8.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
