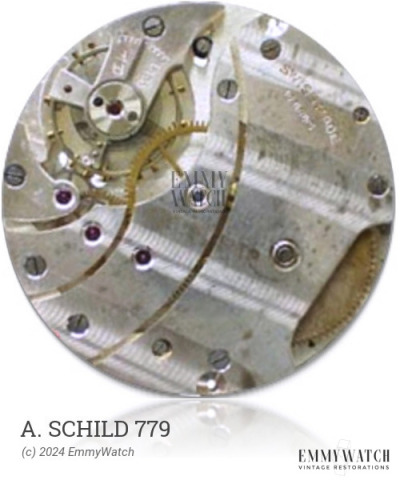

A. Schild 779
(AS, A Schild)
Ligne: 5.75 x 8.5'''
Jewels: 17
Power Reserve: 32 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1955
Size: 13 x 19.8 mm
Height: 3.85 mm
Hands: 1.00 x 0.55 mm
Base: Otero 25
The A. Schild 779 watch movement features a ratchet mechanism positioned on the dial side and a crown mechanism that utilizes a rocker bar. This manually-wound movement was commonly employed around the year 1955.
The A. Schild 779 features the following functions:
- Manual Winding
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.25 x 0.090 x 240 x 7.5 mm | GR3095 | Manual | Buy mainspring |
| 1.20 x 0.080 x 220 x 7.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
