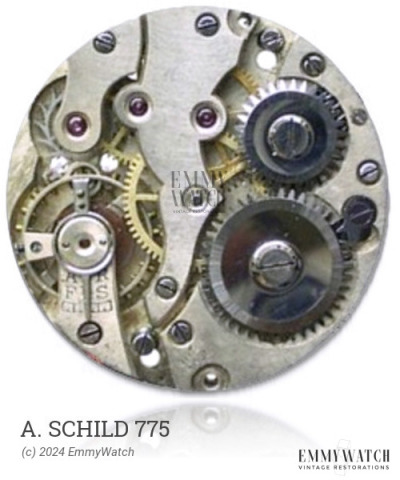

Return To ShopThe A. Schild 775 is a mechanical watch movement that was introduced in 1928. It is based on the Urofa 58 movement pattern, which prioritizes space efficiency. This movement features an indirect sub-second mechanism and incorporates shock protection through the use of elastic pivots. The design of the pivots ensures a steady transition from the pivot to the thinner end of the staff, reducing the risk of breakage. The A. Schild 775 movement is manually wound and includes a sub-second function. It has been utilized since its inception in 1928.
The A. Schild 775 features the following functions:
Dimensions | GR Reference # | End Type | Buy |
---|---|---|---|
1.20 x 0.130 x 390 x 12.0 mm | Manual | Buy mainspring | |
1.20 x 0.140 x 380 x 12.0 mm | GR3003 | Manual | Buy mainspring |
Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
---|
Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
---|
Part Description | Reference # | Alternate | Buy |
---|---|---|---|
ROLLER 250X115X42 | 82S/111R | Buy part |
