A. Schild 731
(AS, A Schild)
Ligne: 8.75 x 12'''
Jewels: 17
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1950
Size: 20.05 x 26.3 mm
Height: 5.25 mm
Hands: 1.40 x 0.80 x 0.18 mm

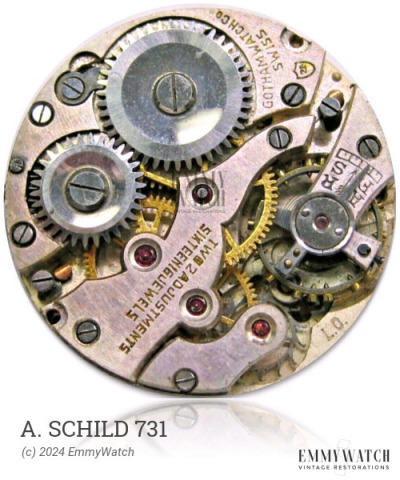

The A. Schild 731 is a mechanical watch movement with a ratchet on the dial side and a crown mechanism featuring a rocker bar. This movement has the following functions: manual winding, sweep seconds, and it was commonly used during the period of approximately 1950.
The A. Schild 731 features the following functions:
- Manual Winding
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.70 x 0.110 x 320 x 10.0 mm | Manual | Buy mainspring | |
| 1.70 x 0.110 x 320 x 9.5 mm | GR4907 | Manual | Buy mainspring |
| 1.70 x 0.110 x 260 x 8.0 mm | GR4904 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
