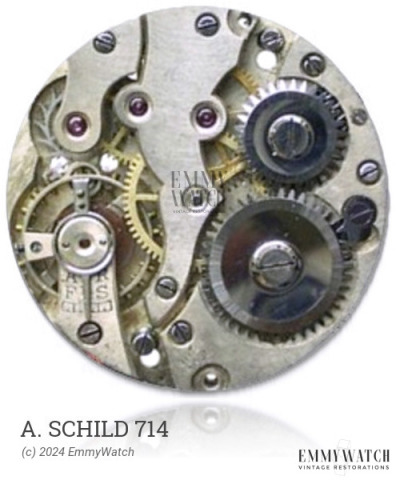

A. Schild 714
(AS, A Schild)
Ligne: 10.5'''
Jewels: 1/15
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1980
Diameter: 23.69 mm
Hands: 1.30 x 0.90 mm
The A. Schild 714 is a mechanical watch movement featuring a pin-lever escapement. It is a manually wound movement with a sweep seconds hand and includes a date function. The pin lever escapement used in the A. Schild 714 movement was commonly utilized in watchmaking during the approximate period of 1980.
The A. Schild 714 features the following functions:
- Date
- Manual Winding
- Pin lever
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 4334 | Ordinary/None | Buy staff |
| 4113 | Ordinary/None | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.080 x 12.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
