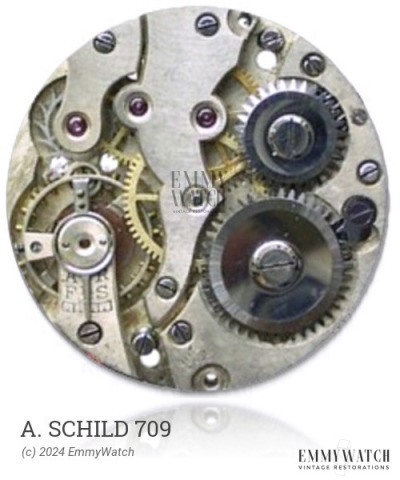

A. Schild 709
(AS, A Schild)
Ligne: 4.5 x 6'''
Jewels: 17
Power Reserve: 37 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: 1960-1970
Size: 10.25 x 14 mm
Height: 3.4 mm
Hands: 0.88 x 0.45 mm
Base: Universal Geneve 402
The A. Schild 709 is a manual wind watch movement that was predominantly used from 1960 to 1970. It can be considered nearly equivalent to the Universal 400 through 402, 01 family of movements.
The A. Schild 709 features the following functions:
- Manual Winding
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.060 x 200 x 5.5 mm | GR3172 | Manual | Buy mainspring |
| 1.30 x 0.065 x 180 x 5.5 mm | GR3177 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
