A. Schild 668
(AS, A Schild)
Ligne: 15.5'''
Jewels: 17/21
Frequency: 18000 vph
Type: Manual Wind
Period used: 1938-
Diameter: 34.5 mm
Hands: 2.20 x 1.40 mm

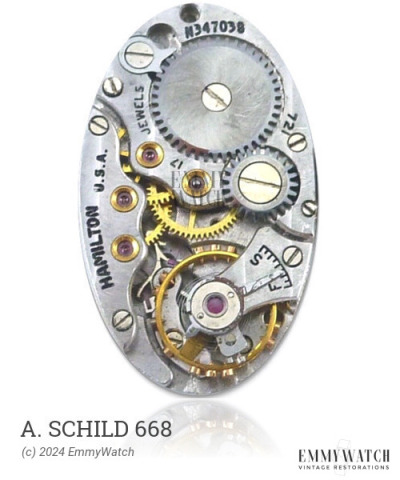

The A. Schild 668 watch movement, used in the period starting from 1938, incorporates a Breguet hairspring. It is a manual-wind chronograph movement designed with a 60-second and 30-minute subdial, along with a sub-second function. The movement features a pillar wheel and is equipped with a single pusher for its chronograph operation.
The A. Schild 668 features the following functions:
- Manual-wind chronograph, 60s, 30min, pillar wheel, single pusher
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.70 x 0.160 x 430 x 14.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
