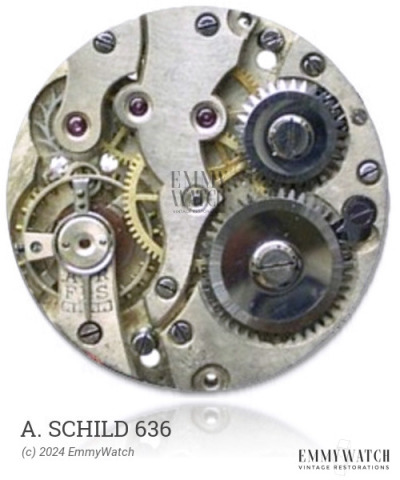

Return To ShopThe A. Schild 636 watch movement was produced during the period of 1925 to the late 1930s by Alpina Gruen Gilde. It features a bimetallic screw balance and a Breguet hairspring, ensuring precise timekeeping. The movement is equipped with a straight lever and a stem mechanism without a setting-lever spring. This manual wind movement incorporates a sub-second function and has been in use since its introduction in 1925.
The A. Schild 636 features the following functions:
Dimensions | GR Reference # | End Type | Buy |
---|---|---|---|
1.45 x 0.120 x 318 x 9.5 mm | Manual | Buy mainspring | |
1.40 x 0.120 x 320 x 10.5 mm | Manual | Buy mainspring | |
1.40 x 0.120 x 320 x 9.5 mm | GR3728 | Manual | Buy mainspring |
Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
---|
Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
---|
Part Description | Reference # | Alternate | Buy |
---|---|---|---|
CLUTCH | 407/GRU 153 | Buy part | |
FOURTH WHEEL | 220/GRU 157 | 220/GRU 157 | Buy part |
MAINSPRING 1.45-.12-318 9,5 | MS-5595M | GR 3728 | Buy part |
ROLLER 215X100X42 | 82S/96R | 82S/96R | Buy part |
SET LEVER | 443/GRU 153 | 443/GRU 153 | Buy part |
STAFF | 100/373 | Buy part | |
STEM | 200/392F | 401/GRU 153 | Buy part |
WINDING PINION | 410/GRU 153 | 410/GRU 153 | Buy part |
