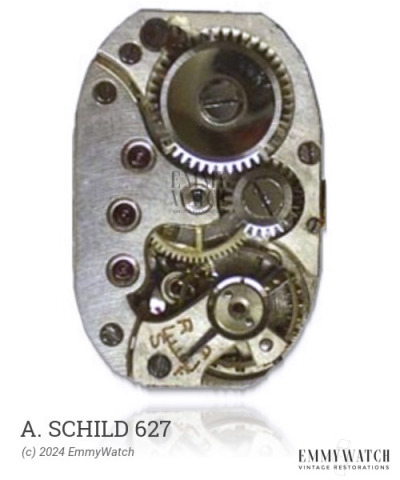

A. Schild 627
(AS, A Schild)
Ligne: 8.75'''
Jewels: 17
Lift Angle: 53°
Power Reserve: 50 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: 1972-
Diameter: 19.7 mm
Height: 4.0 mm
Hands: 1.30 x 0.80 x 0.20 mm
The A. Schild 627 is a manual wind watch movement introduced in 1972. It features an indirectly driven minute hand, which allows for a larger balance and a low profile design. The movement includes several functions such as sweep seconds, quickset date, shock protection, and a calendar with quickset. The A. Schild 627 was used during the period from 1972 onwards.
The A. Schild 627 features the following functions:
- Calendar with quickset
- Date: quickset
- Manual Winding
- Shock Protection
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.20 x 0.080 x 7.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
