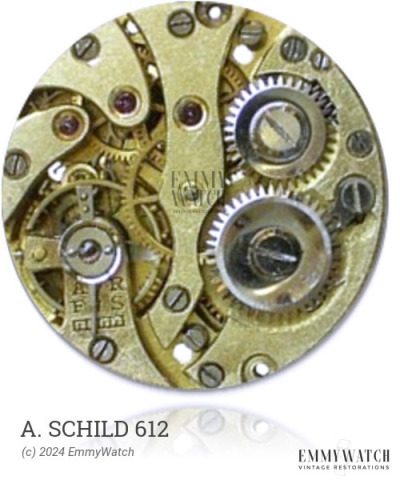

A. Schild 612
(AS, A Schild)
Ligne: 12.5'''
Jewels: 16
Power Reserve: 42 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1956-1959
Diameter: 28 mm
Height: 5.6 mm
Hands: 1.40 x 0.80 / 0.22 mm
The A. Schild 612 watch movement was produced during the period of 1956-1959 and a total of 8126 units were manufactured. It is a manual wind movement that features sub second, day, date, and calendar functions.
The A. Schild 612 features the following functions:
- Calendar
- Date
- Day
- Manual Winding
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.70 x 0.130 x 360 x 11.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| RATCHET WHEEL | 0285408 | 415/1141 | Buy part |
| STAFF, INCA | 100/2622 | Buy part | |
| WINDING PINION | 410/1143 | 2979 | Buy part |
