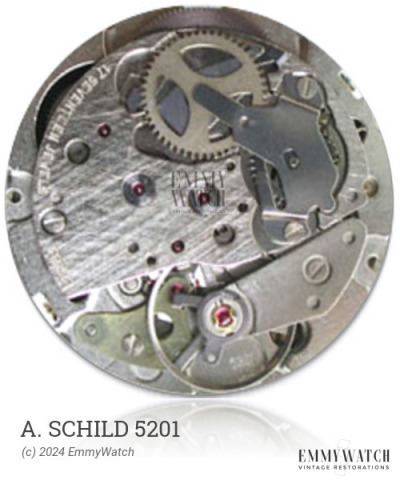

A. Schild 5201
(AS, A Schild)
Ligne: 18.5'''
Jewels: 15/17
Power Reserve: 41 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Diameter: 41.65 mm
Height: 4.2 mm
Hands: 1.98 x 1.12 / 0.26 mm
The A. Schild 5201 is a mechanical watch movement characterized by its open face calibre. It offers optional Breguet hairspring and varying bridge shapes, potentially including a left-handed ratchet-wheel screw. The movement is part of a series of calibre designations, such as 233, 237, 241, 247, 253, 257, 263, 269, 275, 281, 443, 453, 475, and 481, which likely denote differing bridge configurations. The A. Schild 5201 movement provides stem winding and setting, a sub-second display, and was commonly used around 1945.
The A. Schild 5201 features the following functions:
- Stem wind and set
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.210 x 490 x 17.0 mm | Manual | Buy mainspring | |
| 1.50 x 0.210 x 480 x 15.5 mm | GR4365 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
