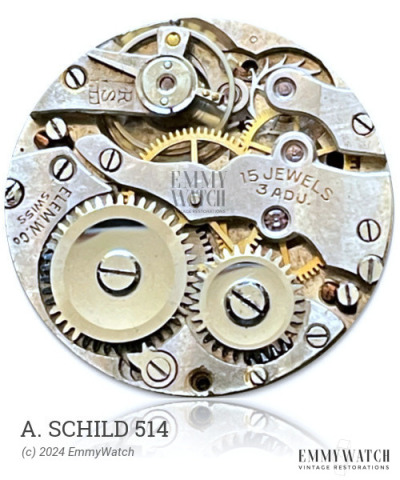

A. Schild 514
(AS, A Schild)
Ligne: 8.75'''
Jewels: 17
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1950
Diameter: 19.7 mm
Height: 3.3 mm
Hands: 1.20 x 0.60 / 0.20 mm
The A. Schild 514 is a manual wind mechanical watch movement, featuring a sub-second function. It is part of a range of movements that includes the Felsa 720 and 721, with specific differences between them not known. The A. Schild 514 movement was commonly used in watches produced around the 1950s period.
The A. Schild 514 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.070 x 280 x 7.5 mm | Manual | Buy mainspring | |
| 1.40 x 0.075 x 260 x 7.0 mm | GR3591 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
