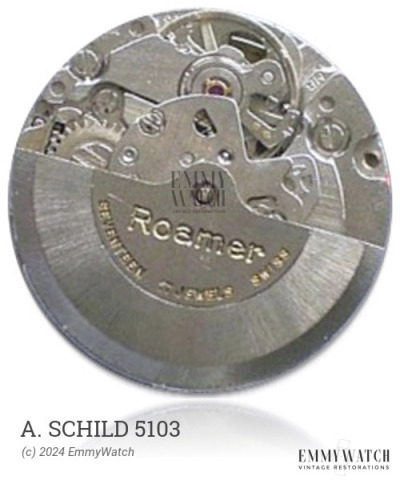

A. Schild 5103
(AS, A Schild)
Ligne: 11.5'''
Jewels: 17/25
Lift Angle: 53°
Power Reserve: 40 hrs
Frequency: 28800 vph
Type: Automatic
Period used: 1974-1975
Diameter: 26 mm
Height: 5.1 mm
Hands: 1.50 x 0.90 x 0.25 mm
The A. Schild 5103 watch movement, used during the period of 1974-1975, is an automatic movement that features a sweep second hand and a calendar with quickset functions for both the day and date. Additionally, it offers the option of a hack feature.
The A. Schild 5103 features the following functions:
- Automatic Winding
- Calendar with quickset
- Date: quickset
- Day: quickset
- Option: Hack feature
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.25 x 0.100 x 500 x 12.0 mm | GR3120X | Auto | Buy mainspring |
| 1.20 x 0.115 x 400 x 11.5 mm | GR2966X | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
