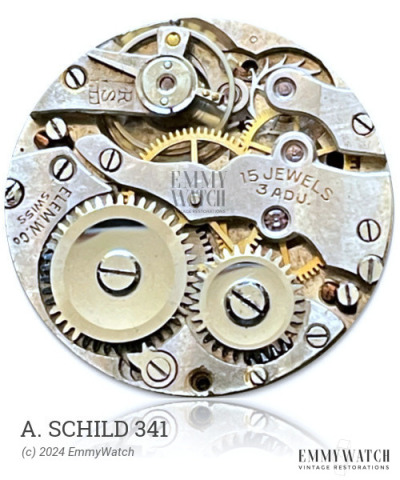

A. Schild 341
(AS, A Schild)
Ligne: 11.5'''
Jewels: 7/15/17/21
Power Reserve: 41 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1955
Diameter: 26 mm
Height: 4.7 mm
Hands: 1.40 x 0.80 x 0.19 mm
Base: Otero 40
The A. Schild 341 is a mechanical watch movement that functions through manual winding. It features a sweep second hand and includes a date function that can be set by adjusting the time between 20:30 and 24:00. This movement was commonly used in watches manufactured around 1955.
The A. Schild 341 features the following functions:
- Date: set by changing 20:30-24h
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 4136 | Incabloc | Buy staff |
| 4136 | Kif | Buy staff |
| 4136 | Monorex | Buy staff |
| 4136 | Unishock | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.090 x 315 x 9.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More | |||
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| CALENDAR DRIVE WHEEL | A/4148 | 2555/OTE 482 | Buy part |
| DATE JUMPER SPRING | A/4151 | 2575/OTE 482 | Buy part |
| DATE STAR (IND) | A/4155 | 2556/OTE 482 | Buy part |
