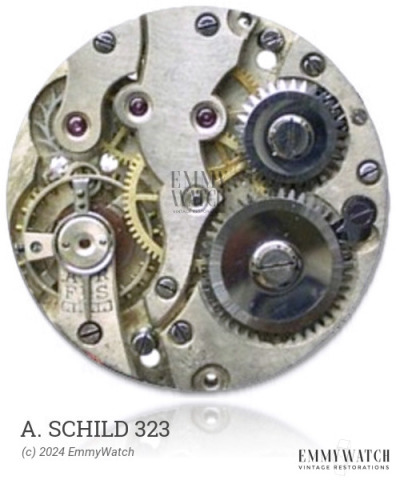

A. Schild 323
(AS, A Schild)
Ligne: 8.75'''
Jewels: 17
Power Reserve: 43 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: 1960-1966
Diameter: 19.8 mm
Height: 2.45 mm
Hands: 1.20 x 0.60 mm
Base: Universal Geneve 820
The A. Schild 323 watch movement, manufactured during the period of 1960-1966, features a Girocap combined setting for the escapement wheel. It is a manual wind movement with the option for a sub second function. Additionally, it incorporates the Incabloc Shock Protection system.
The A. Schild 323 features the following functions:
- Incabloc Shock Protection
- Manual Winding
- Option: sub second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 0.90 x 0.100 x 260 x 8.0 mm | GR2298 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
