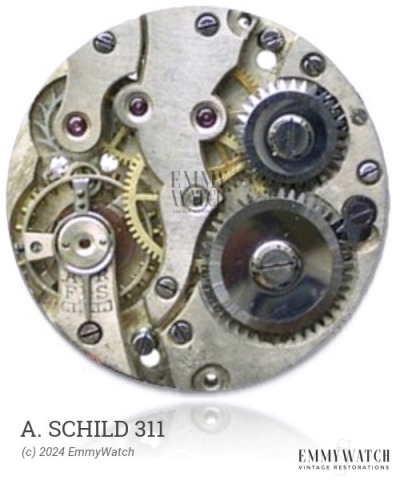

A. Schild 311
(AS, A Schild)
Ligne: 11.25'''
Jewels: 15
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Diameter: 25.38 mm
Hands: 1.40 x 0.80 / 0.22 mm
The A. Schild 311 watch movement is a manual wind mechanical movement with a sweep second function. Developed around 1945, it shares similarities with the ETA 863 movement, but specific differences are not known. The movement's technical details, such as bridge shapes or other components, are not specified in the given information.
The A. Schild 311 features the following functions:
- Manual Winding
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.100 x 315 x 9.5 mm | Manual | Buy mainspring | |
| 1.60 x 0.110 x 280 x 8.5 mm | GR4513 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
