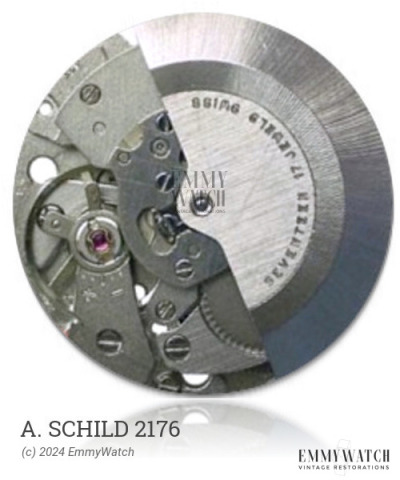

A. Schild 2176
(AS, A Schild)
Ligne: 11.25'''
Jewels: 17
Lift Angle: 52°
Power Reserve: 38 hrs
Frequency: 18000 vph
Type: Automatic
Period used: ~1950
Diameter: 25.1 mm
Height: 5.75 mm
Hands: 1.30 x 0.90 x 0.22 mm
The A. Schild 2176 is a detached manual wind watch movement that features automatic winding and a sweep second function. It was commonly used in watches produced around the 1950s.
The A. Schild 2176 features the following functions:
- Automatic Winding
- Sweep Seconds
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 3605 | Ordinary/None | Buy staff |
| 4929 | Ordinary/None | Buy staff |
| 3727 | Incabloc | Buy staff |
| 3306 | Kif | Buy staff |
| 3265 | Supershock | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.45 x 0.100 x 280 x 8.5 mm | GR3952X | Auto | Buy mainspring |
| 1.45 x 0.100 x 250 x 8.5 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
