A. Schild 2161
(AS, A Schild)
Ligne: 10.5'''
Jewels: 15
Power Reserve: 36 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1936
Diameter: 23.7 mm
Height: 3.9 mm
Hands: 1.30 x 0.80 / 0.22 mm
Base: A. Schild 341

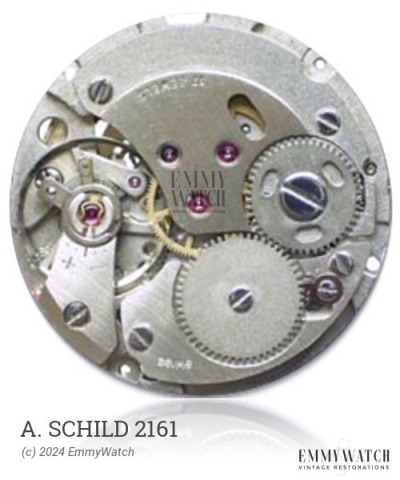

The A. Schild 2161 watch movement belongs to a family of movements that include various bridge layouts, some of which may be labeled as AS 341. Different designations exist for these movements, including 346, 347, 349, 363, 384, 389, 436, 464, 514, 562, 583, 708, 932, and 934. The A. Schild 2161 movement is a manual wind movement with a sub-second function. It was commonly used around the year 1936.
The A. Schild 2161 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring | |
| 1.40 x 0.105 x 300 x 9.0 mm | GR3680 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
