A. Schild 2086
(AS, A Schild)
Ligne: 9.25'''
Jewels: 17
Power Reserve: 39 hrs
Frequency: 18000 vph
Type: Automatic
Period used: 1950-1951
Diameter: 20.8 mm
Height: 5.5 mm
Hands: 1.30 x 0.80 x 0.20 mm

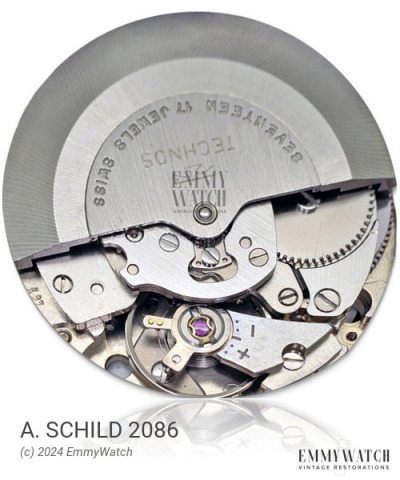

The A. Schild 2086 watch movement, belonging to the ETA family 1306-1320 without ball bearing, was developed during the period of 1950-1951. This movement offers automatic winding capabilities and features a sweep second function.
The A. Schild 2086 features the following functions:
- Automatic Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.080 x 8.0 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
