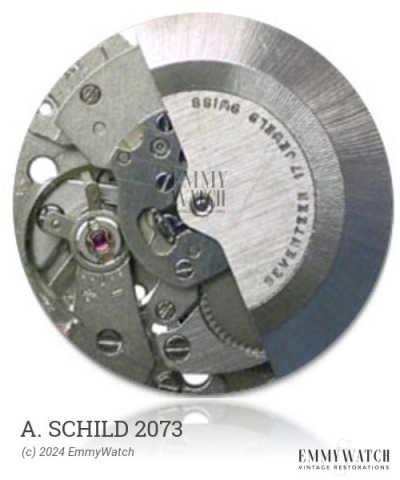

A. Schild 2073
(AS, A Schild)
Ligne: 9.25'''
Jewels: 17
Power Reserve: 39 hrs
Frequency: 18000 vph
Type: Automatic
Period used: ~1951
Diameter: 21 mm
Height: 5.3 mm
Hands: 1.30 x 0.75 / 0.18 mm
Base: A. Schild 1323
The A. Schild 2073 is a detached manual wind movement that features a balance from Bulova. It is an automatic movement with sub-seconds functionality. The movement was introduced around 1951.
The A. Schild 2073 features the following functions:
- Automatic Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.45 x 0.085 x 240 x 7.5 mm | GR3930X | Auto | Buy mainspring |
| 1.45 x 0.085 x 240 x 7.0 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
