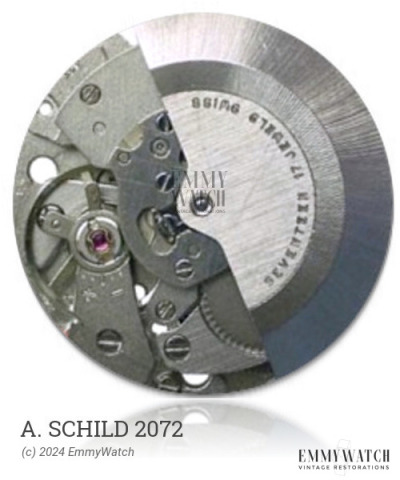

A. Schild 2072
(AS, A Schild)
Ligne: 11.5'''
Jewels: 21
Lift Angle: 52°
Power Reserve: 47 hrs
Frequency: 18000 vph
Type: Automatic
Period used: ~1965
Diameter: 26 mm
Height: 5.3 mm
Hands: 1.50 x 0.90 x 0.21 mm
Base: ETA 2465
The A. Schild 2072 watch movement underwent modifications to its base plate during the manufacturing period to align it with the ETA specifications. This automatic movement features a sweep second hand and is equipped with KIF Shock Protection. The A. Schild 2072 movement was commonly used in watches produced around 1965.
The A. Schild 2072 features the following functions:
- Automatic Winding
- KIF Shock Protection
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
