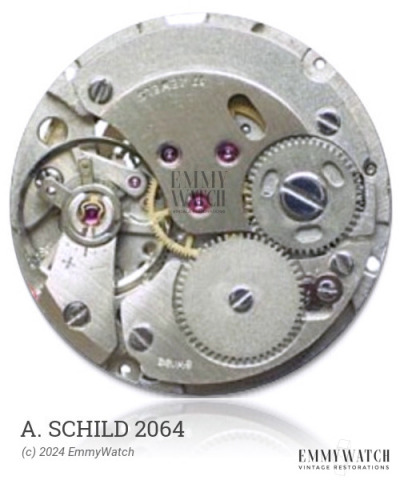

A. Schild 2064
(AS, A Schild)
Ligne: 6.75 x 8'''
Jewels: 17
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1960-1962
Size: 15.3 x 18.2 mm
Height: 3.45 mm
Hands: 1.10 x 0.60 mm
Base: Bulova 6BMC
The A. Schild 2064 watch movement, along with its counterparts Aurore-Villeret 120, Bulova 6AH, and FHF 120, are considered to be quite equivalent. There are conflicting records regarding their interchangeability. Notably, the Bulova calibres possess certain design features absent in the FHF calibres, suggesting their origin from Aurore-Villeret. No distinguishable dissimilarities are currently known between the 6BM and 6CA variations. The 6BM movement is a manual wind movement and was utilized during the period of 1960-1962.
The A. Schild 2064 features the following functions:
- Manual Winding
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.35 x 0.080 x 260 x 7.5 mm | GR3474 | Manual | Buy mainspring |
| 1.35 x 0.080 x 250 x 7.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
Documents
Parts Listing
