A. Schild 2060
(AS, A Schild)
Ligne: 11.5'''
Jewels: 17/21
Power Reserve: 41 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1969-1971
Diameter: 25.95 mm
Height: 3.7 mm
Hands: 1.50 x 0.90 x 0.21 mm

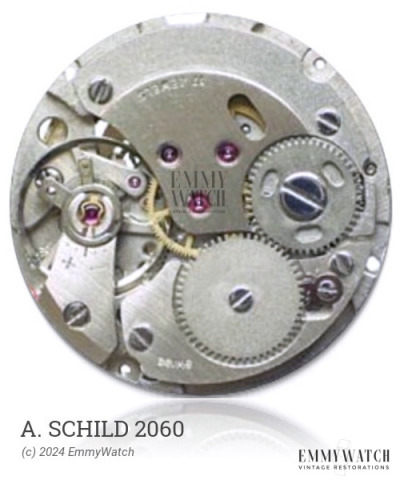

The A. Schild 2060 watch movement is a manual wind movement with a sweep second function. It was in use from 1969 to 1971 and is part of the 460/1460 family, which differs from the 360/1360 family in terms of the stem being unlocked by a pusher instead of a screw and having a larger date.
The A. Schild 2060 features the following functions:
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.20 x 0.110 x 320 x 10.0 mm | Manual | Buy mainspring | |
| 1.20 x 0.120 x 300 x 9.5 mm | GR2972 | Manual | Buy mainspring |
| 1.20 x 0.130 x 300 x 9.5 mm | GR2988 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
