A. Schild 1978-2
(AS, A Schild)
Ligne: 11.5'''
Jewels: 17/21
Power Reserve: 47 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1960
Diameter: 26.3 mm
Height: 3.6 mm
Hands: 1.50 x 0.90 x 0.20 mm
Base: Felsa 4012

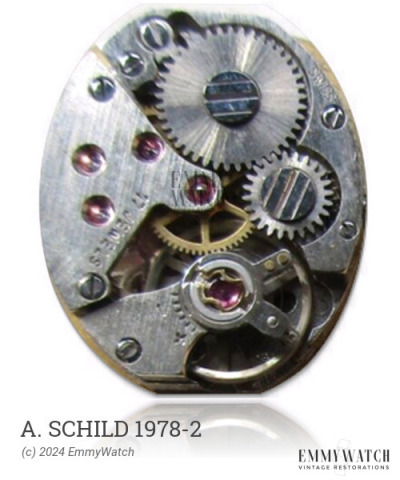

The A. Schild 1978-2 is a mechanical watch movement from approximately 1960, primarily featuring manual wind functionality. It also includes a sweep second hand and a date function that can be set by ±24 hours.
The A. Schild 1978-2 features the following functions:
- Date: set by +/-24h
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.110 x 350 x 10.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
