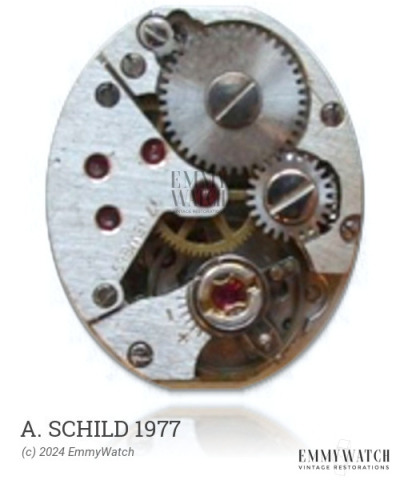

A. Schild 1977
(AS, A Schild)
Jewels: 15
Frequency: 18000 vph
Type: Manual Wind
Period used: 1914-1915
Diameter: 27.94 mm
Base: Elgin 3
The A. Schild 1977 watch movement, produced during 1914-1915 with a total of 12,000 units, features a hunter calibre, specifically model 2. It is equipped with a bimetallic screw balance and a Breguet hairspring. The movement incorporates a negative stem mechanism. Similar to model 2, the 0-size movement is distinguished by its smaller base plate. Detailed differences between model 2, 4, and 6 are currently unknown. The A. Schild 1977 movement encompasses the following functions: stem-winding and setting, sub-second display. Its production period spans from 1914 to 1915.
The A. Schild 1977 features the following functions:
- Stem wind and set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| ROLLER TABLE O/S | 2698/ELG | 2698/ELG | Buy part |
