A. Schild 1883
(AS, A Schild)
Ligne: 12'''
Jewels: 17
Lift Angle: 53°
Power Reserve: 43 hrs
Frequency: 21600 vph
Type: Automatic
Period used: 1969-
Diameter: 27.4 mm
Height: 4.5 mm
Hands: 1.50 x 0.90 x 0.20 mm

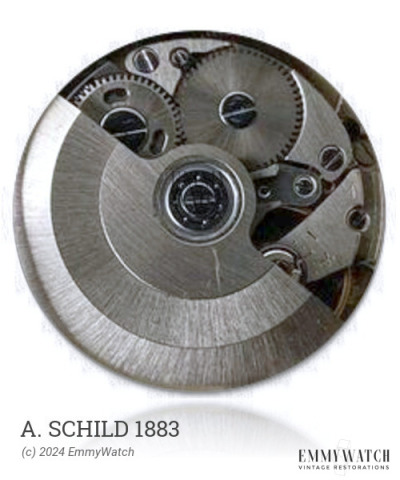

The A. Schild 1883 is a mechanical watch movement that was produced during the period of 1969 and onwards. It features a sophisticated excenter self-winding mechanism, which operates with just one gear stage. The movement offers a range of functions, including automatic winding, sweep seconds, quickset date, shock protection, and a calendar display.
The A. Schild 1883 features the following functions:
- Automatic Winding
- Calendar
- No Manual Wind
- Quickset date
- Shock Protection
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
