A. Schild 1875
(AS, A Schild)
Ligne: 16.5'''
Jewels: 17
Power Reserve: 50 hrs
Frequency: 18000 vph
Type: Manual Wind
Diameter: 37.2 mm
Height: 4.5 mm
Hands: 2.00 x 1.15 / 0.27 mm
Base: Unitas 6498

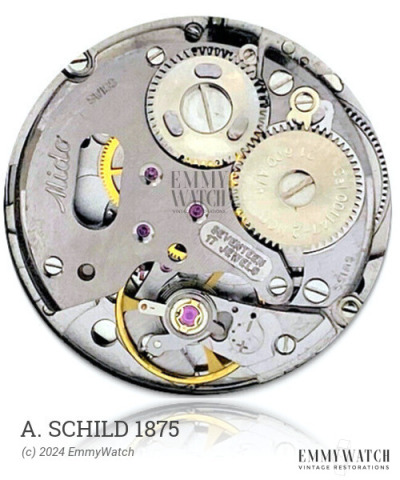

The A. Schild 1875 is a hunter calibre watch movement that was introduced as a transitional model from Unitas to ETA around 2005. This mechanical movement includes functions such as stem wind and set, sub second, and central hours and minutes with a small running seconds subdial at 6:00.
The A. Schild 1875 features the following functions:
- Central hours
- Central minutes
- Mechanical Movement
- Small running seconds subdial at 6:00
- Stem wind and set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 5263 | Ordinary/None | Buy staff |
| 5263 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.180 x 450 x 15.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
